Features
Support 8 CH 8MP/6MP/5MP/4MP/3MP/1080P/ 960P/720P/ 960H/DI/CIF IP video input
Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
Playback : 8 CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
Support POS information overlay on live view and playback
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
4 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Multi-user online simultaneously
Authorization management, log view and device status view
4K output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS
Inteligent playback analysis: Human detection, Car detection
SystemOSEmbedded LinuxVideoNetwork Input8 CH IPC input
Network Input Resolution8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIFOutputHDMI x 1 : 3840 x 2160 / 1920 x 1080 / 1280 x 1024/ 1024 x768VGA: 1920 x 1080 / 1280 x 1024/ 1024 x 768CompressionStandard H.265 / H.264AudioNetwork Input4 CH IPC audio input
2-way AudioRCA x 1Local OutputRCA x 1CompressionG.711(U/A)RecordRecord StreamDual stream recordingResolution8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIFFrame RateNTSC:30fps; PAL:25fpsPlaybackSimultaneous PlaybackMax. 8 CH
SearchTime slice / time / event / tag / smart searchSmart SearchHighlighted color to display the camera record in a certainperiod of time, different colors refers to different record eventsFunctionPlay, pause, FF, FB, digital zoom, etc.Decoding CapabilityLive View/ Playback1CH 8MP;4CH 1080PAlarmModeManual, sensor, motion, exception, smart eventsInputSupports IPC alarm inputOutputSupports IPC alarm outputTriggeringRecord, snap, preset, e-mail, etc.NetworkInterfaceRJ 45 x 1 (10/100/1000Mbps)ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc.Incoming/ Outgoing Bandwidth80/80 (Mbps)
Client ConnectionMax. 10 users accessMobile DeviceOSiOS, AndriodStorageHDD InterfaceSATA3.0 x 1, max 8TBackupLocal BackupU disk, USB mobile HDDNetwork BackupYesPortUSBUSB 2.0 x2Remote ControllerOptionalPoEPoE Ports100M RJ45 ? 8
StandardsIEEE802.3afOutput Power96W
OthersPower SupplyDC 48V/2.5A

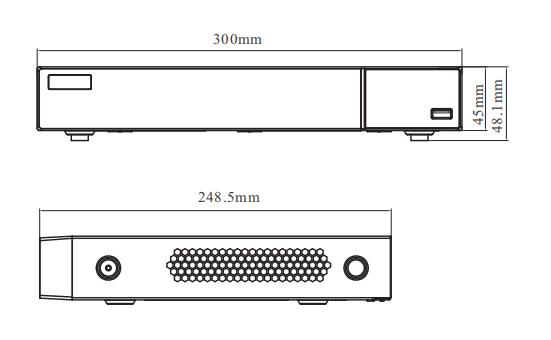

Consumption 10W ( without HDD )Dimensions (mm)300 x 249 x 45( W x D x H )Working Environment-10~50 °C, 10% ~ 90% humidityCertificateCE, FCCEnvironmental ProtectionComplies with Directive EU RoHS, REACH and WEEE
